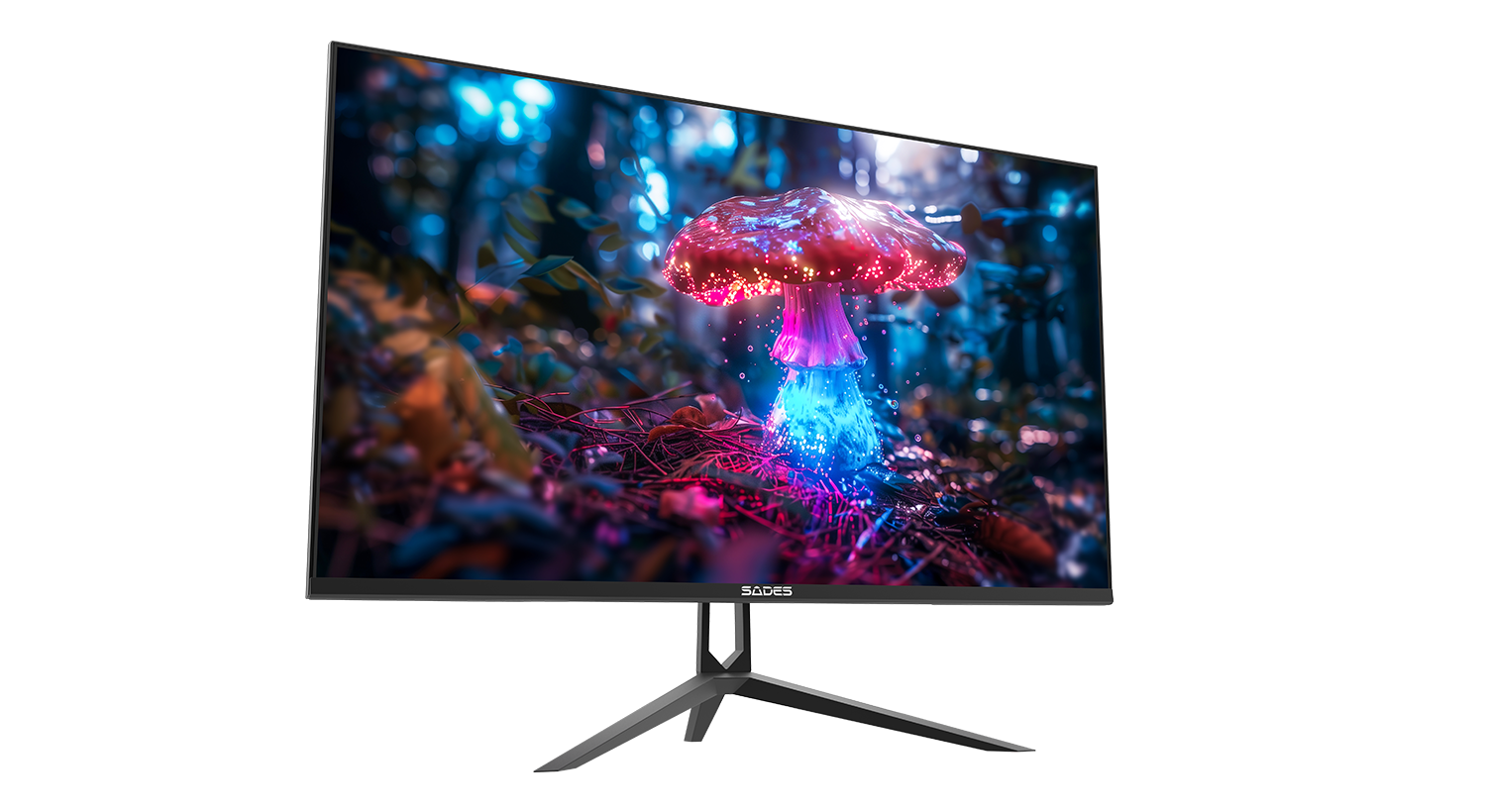

Features:
· FHD Monitor:
1920x1080 Resolution
8-Bit
· IPS Panel:
120Hz refresh rate
Offering response times with a 1ms MPRT
Reduced lag and stuttering for much faster reaction time, and improved tracking with reduced motion blur and ghosting
Vibrant IPS Panel allowing for wider viewing angles and exceptional image quality
Rich colors and contrast
Anti-glare panel design
ELED panel providing lower power consumption and a thinner form factor
· IO Port connectivity:
HDMI
DisplayPort
Audio output connectivity
Rear located controls for monitor related calibration and user settings
Streamlined connectivity with Multiple devices such as consoles, PC's and various peripherals
Specifications
SCREEN
SCREEN
Screen Size: 22-24-27-inch
Curvature: Flat
Panel Resolution: 1920×1080, Full-HD
Response Time: 1ms MPRT
Refresh Rate: 120Hz
Aspect Ratio: 16:9 (H:V)
Color Support (Bit Depth): 16.7M (8-bit)
Contrast: 22" & 24": 1000:1
27": 1300: 1
Brightness: 22": 220 cd/㎡
24" & 27": 250 cd/m²
Backlight Technology: ELED
Curvature: Flat
Panel Resolution: 1920×1080, Full-HD
Response Time: 1ms MPRT
Refresh Rate: 120Hz
Aspect Ratio: 16:9 (H:V)
Color Support (Bit Depth): 16.7M (8-bit)
Contrast: 22" & 24": 1000:1
27": 1300: 1
Brightness: 22": 220 cd/㎡
24" & 27": 250 cd/m²
Backlight Technology: ELED
POWER
POWER
Input Voltage: 12V
Input Electric Current: 22" & 24": 3A;
27": 3.5A
Power Consumption: 22" & 24": 36W Max.(on), ≤0.5W(standby);
27": 42W Max.(on), ≤0.5W(standby)
Power Cord Type: UK plug
Input Electric Current: 22" & 24": 3A;
27": 3.5A
Power Consumption: 22" & 24": 36W Max.(on), ≤0.5W(standby);
27": 42W Max.(on), ≤0.5W(standby)
Power Cord Type: UK plug
APPEARANCE
APPEARANCE
Color Options: Black
Size Options:22-inch / 24-inch /27-inch
Size Options:22-inch / 24-inch /27-inch
UNIT SIZE (DESIGN)
UNIT SIZE (DESIGN)
Stand Base: Black HAS

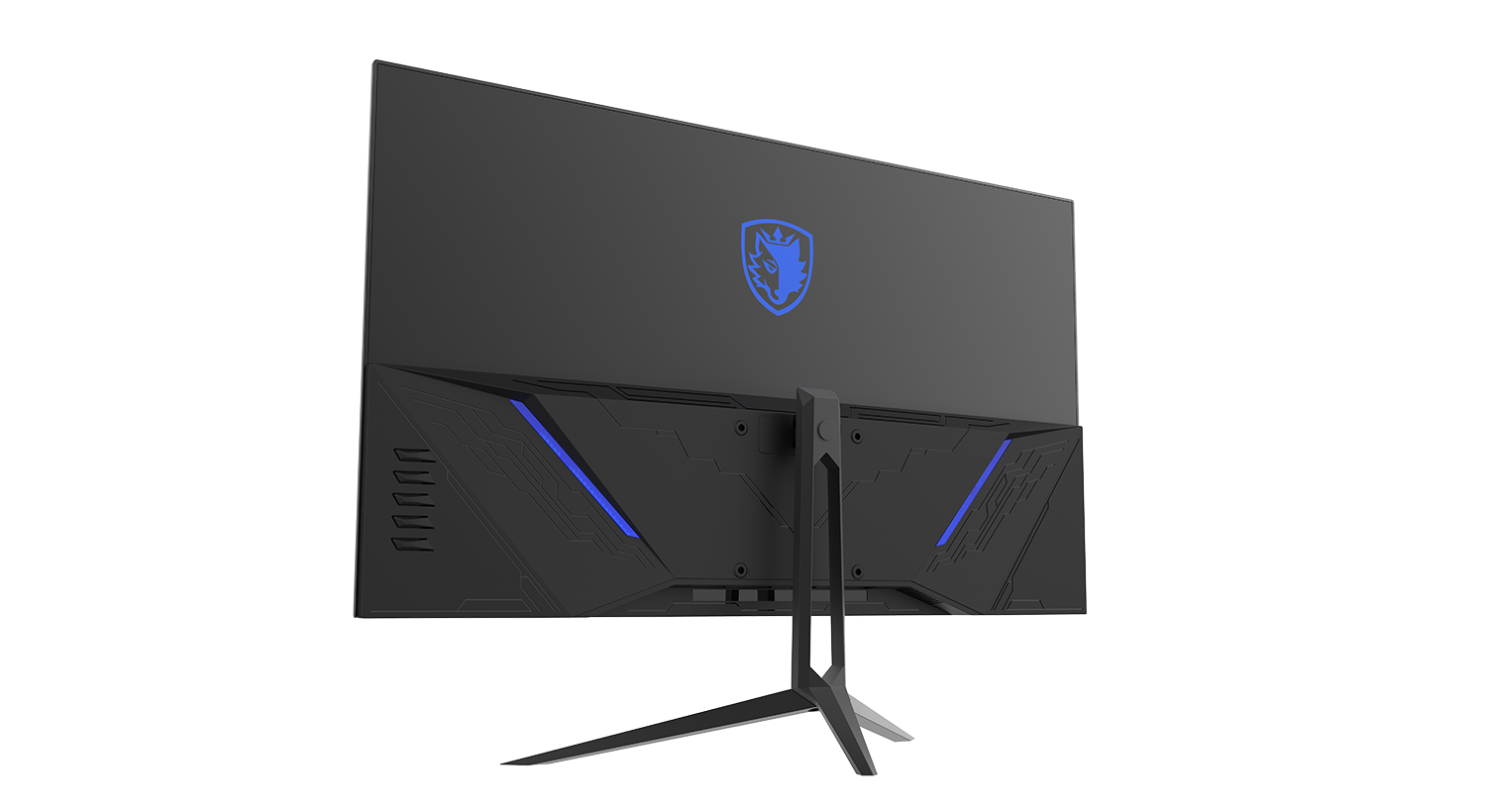

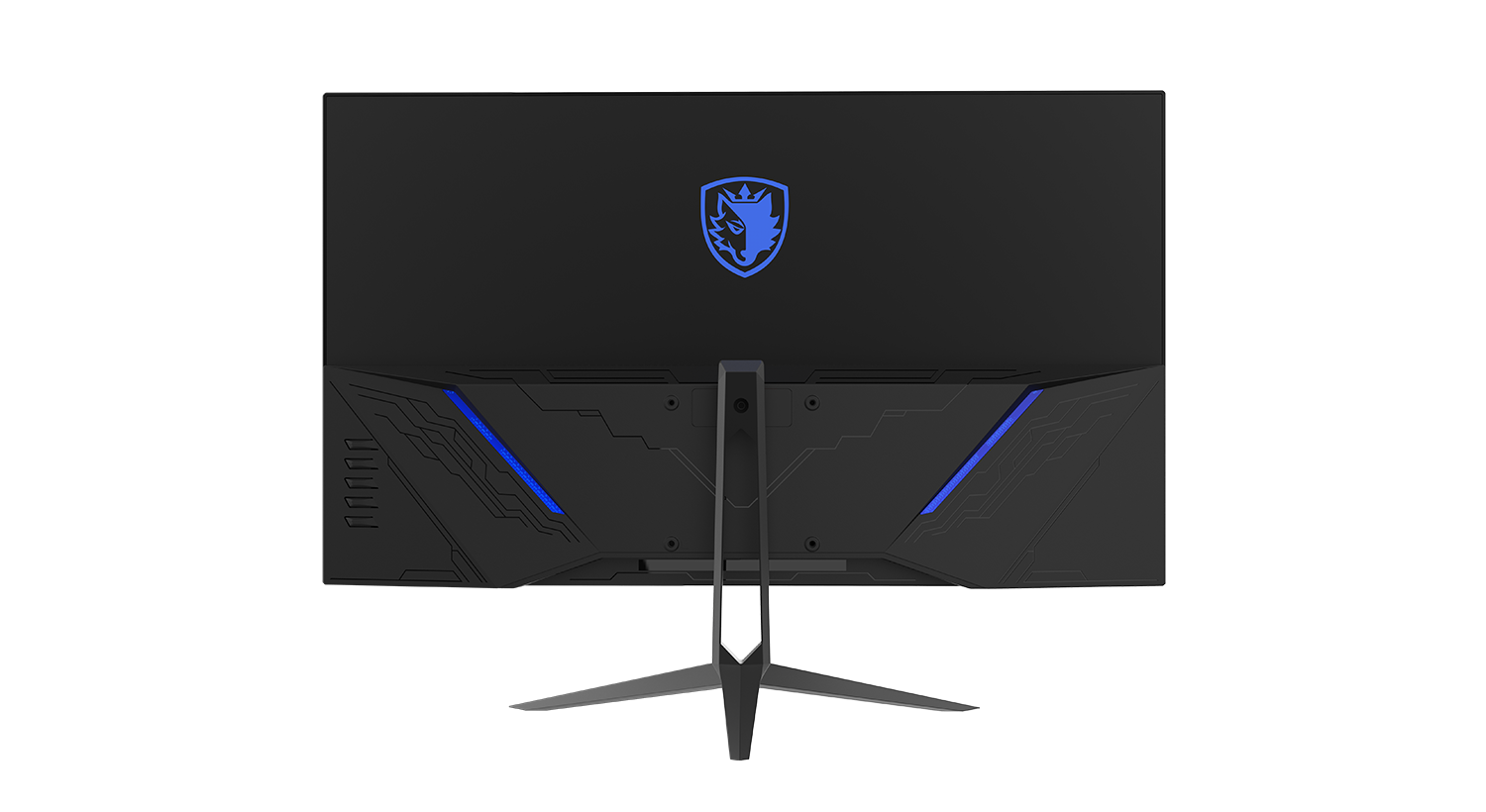

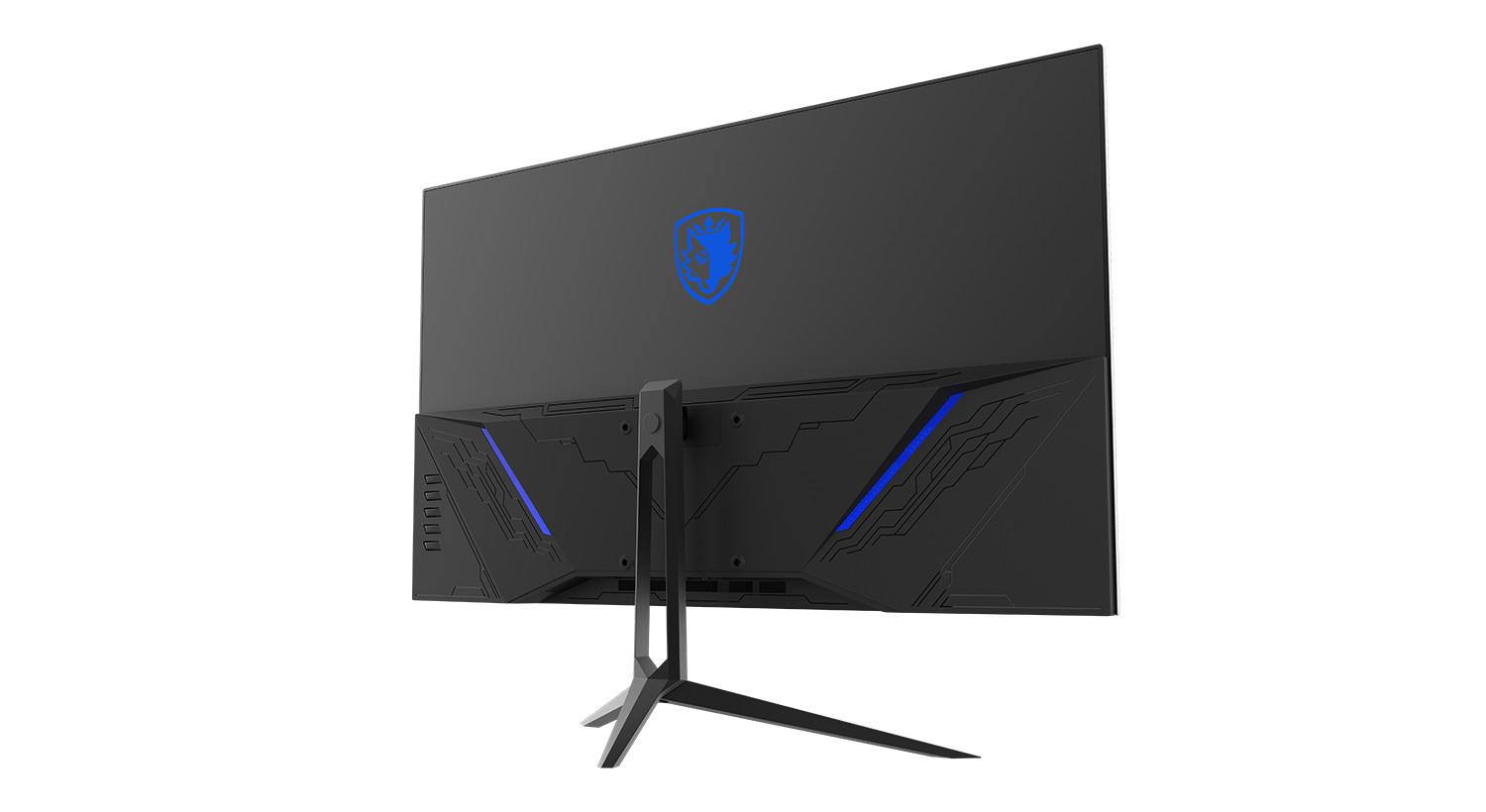

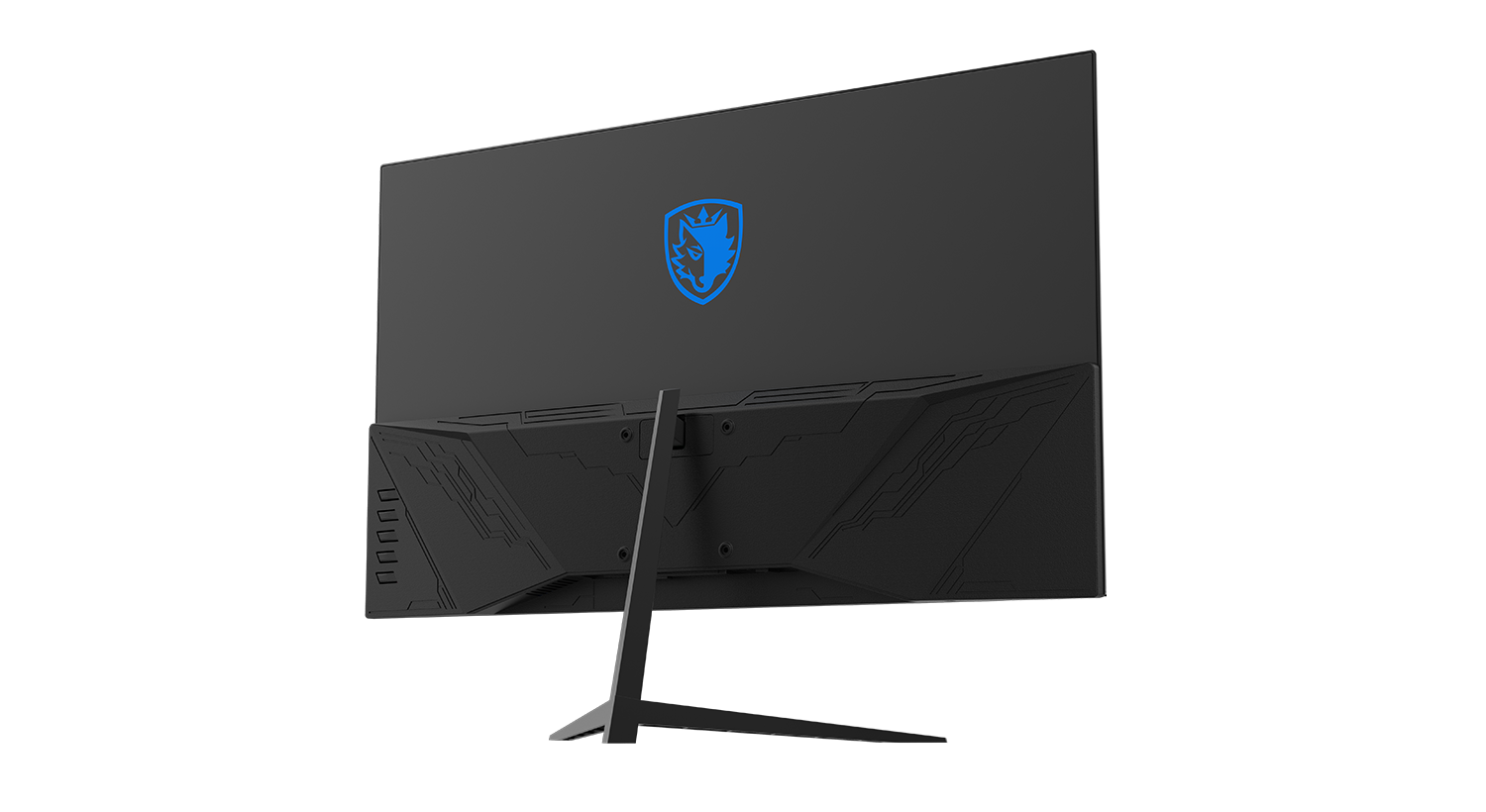

Rear Cabinet: Black color with blue decoration
Disassembly: Quick release
22" Dimensions:
-Without stand: 492*281*43mm (W*H*D)
-With stand: 492*353*168mm (W*H*D)
-Package dimensions: 550*105*355 mm
24" Dimensions:
-Without stand: 540*317*39mm (W*H*D)
-With stand: 540*405*154mm (W*H*D)
-Package dimensions: 595*105*380 mm
27" Dimensions:
-Without stand: 614*359*41mm (W*H*D)
-With stand: 614*440*188mm (W*H*D)
-Package dimensions: 675*105*430 mm
Rear Cabinet: Black color with blue decoration
Disassembly: Quick release
22" Dimensions:
-Without stand: 492*281*43mm (W*H*D)
-With stand: 492*353*168mm (W*H*D)
-Package dimensions: 550*105*355 mm
24" Dimensions:
-Without stand: 540*317*39mm (W*H*D)
-With stand: 540*405*154mm (W*H*D)
-Package dimensions: 595*105*380 mm
27" Dimensions:
-Without stand: 614*359*41mm (W*H*D)
-With stand: 614*440*188mm (W*H*D)
-Package dimensions: 675*105*430 mm
WEIGHT
WEIGHT
22" Weight
Net Weight: 1.8kg
Gross Weight: 2.5kg
24" Weight
Net Weight: 2.1kg
Gross Weight: 3.1kg
27" Weight
Net Weight: 3.2kg
Gross Weight: 4.3kg
22" EAN CODE: 6974828470625
24" EAN CODE: 6974828470618
27" EAN CODE: 6974828470601
Net Weight: 1.8kg
Gross Weight: 2.5kg
24" Weight
Net Weight: 2.1kg
Gross Weight: 3.1kg
27" Weight
Net Weight: 3.2kg
Gross Weight: 4.3kg
22" EAN CODE: 6974828470625
24" EAN CODE: 6974828470618
27" EAN CODE: 6974828470601
VESA SIZE (W x H)
VESA SIZE (W x H)
22" VESA Size (WxH)
VESA Dimension: 75*75mm
VESA Accessory (Fasten): Screw M4
24" VESA Size (WxH)
VESA Dimension: 100*100mm
VESA Accessory (Fasten): Screw M4
227" VESA Size (WxH)
VESA Dimension: 100*100mm
VESA Accessory (Fasten): Screw M4
VESA Dimension: 75*75mm
VESA Accessory (Fasten): Screw M4
24" VESA Size (WxH)
VESA Dimension: 100*100mm
VESA Accessory (Fasten): Screw M4
227" VESA Size (WxH)
VESA Dimension: 100*100mm
VESA Accessory (Fasten): Screw M4
BASE FUNCTIONS
BASE FUNCTIONS
Adjustable Height: NULL
Vertical Tilt: Up: 5°/ Down: 15°
Horizontal Swivel:（L/R): NULL
Pivot Rotation: NULL
Vertical Tilt: Up: 5°/ Down: 15°
Horizontal Swivel:（L/R): NULL
Pivot Rotation: NULL
PACKAGE CONTENTS
PACKAGE CONTENTS
Monitor -User Manual -Power Cord (UK) -Power Adapter
HDMI Cable
Base Stand
Screws -Warranty Card
SADES Sticker
HDMI Cable
Base Stand
Screws -Warranty Card
SADES Sticker
